What Is Resin Channeling in a Water Softener?

Water softener resin channeling is water carving preferred paths through the bed instead of flowing evenly across it, so a small fraction of the resin does nearly all the work while the rest is bypassed. Capacity collapses even though the resin is chemically fine.

It is the fault that presents as randomness. Hardness appears and disappears with no pattern, every component checks out, and a bead sample looks healthy — because the problem is not the media, it is the flow path through it.

Water Softener Resin Channeling: Why It Looks Like Nothing Else

Almost every softener fault produces a consistent symptom. Channeling does not, and that inconsistency is the diagnostic signal.

The mechanism behind the erraticism. Water takes the path of least resistance. Once a low-resistance route exists through the bed, higher flow rates push proportionally more water down it — so a morning when three fixtures run at once sends most of the water through the channel almost untreated, while a quiet afternoon at low flow contacts enough resin to produce a passable result.

That is why testing at a random moment gives contradictory answers, and why households in this situation often describe the softener as "working sometimes."

What is actually happening to the bed. During service, water should move as a flat front down through the resin, contacting every bead. Channeling replaces that front with a few fast lanes. During regeneration the same thing happens in reverse: brine runs down the established channels and never reaches the zones either side, so those zones stay exhausted, and the next service cycle has even less working resin than the last.

It is self-reinforcing. Left alone, it gets worse.

Compaction Is the Same Problem Wearing a Different Name

Bed compaction and channeling get listed separately, and for diagnosis that separation is not useful. Compaction is the bed packing down into a dense mass; channeling is water then forcing routes through it. They share a cause, share symptoms, and share a fix.

The shared cause is a backwash that is not doing its job. Backwash exists to lift the bed, fluidise it, carry out fines and sediment, and let the beads resettle in a loose, even state. That only happens within a fairly narrow flow range set by the tank diameter and the water temperature.

Both errors are real, but the low side is far more common in homes, and the reasons are almost always plumbing rather than the softener itself.

Measuring Backwash Flow, Which Is the Confirming Test

This is the measurement that converts a suspicion into a fact, and it needs a bucket and a watch.

The procedure:

1. Find the backwash rate in your manual. It is set by tank diameter, not by capacity rating. If you cannot find it, the manufacturer will confirm it from the model number.
2. Put the drain line into a bucket of known volume. A five-gallon bucket is ideal. Secure the line — it will kick.
3. Start a manual regeneration and wait for the backwash stage. This is the first stage, and it runs fast.
4. Time the fill. Five gallons in two minutes is 2.5 gpm. Five gallons in four minutes is 1.25 gpm.
5. Compare against spec. A reading materially below the manual's figure is your answer.

Do not take the measurement during brine draw. The brine draw and slow rinse stage runs at a small fraction of the backwash rate by design, and measuring there will convince you of a fault that does not exist. The stage sequence and its timings are set out in Penn State Extension's guide to water softening.

If the flow is low, the cause is in this list:

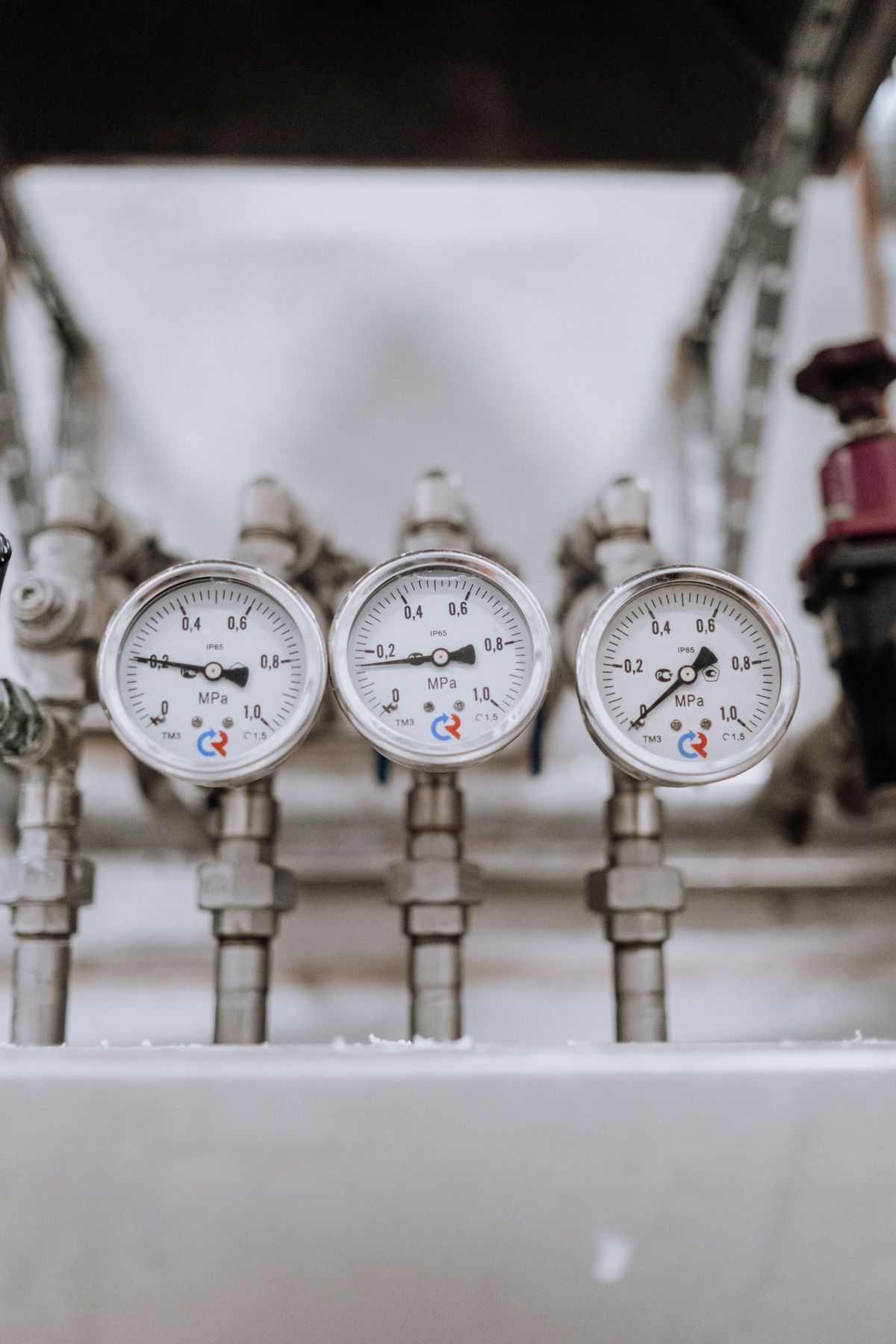

The pressure trap worth knowing about. Static pressure measured with nothing running tells you almost nothing. Measure during backwash, when the unit is actually drawing flow. A system that reads 55 psi at rest and drops to 20 psi under backwash demand has a supply restriction, and the softener is a symptom rather than the cause.

What a Compacted Bed Looks Like When You Open It

If the flow measurement is inconclusive, the bed itself answers the question. The sampling procedure is the same one used for fouling diagnosis, set out in water softener resin fouling.

What you are looking for, in order of how much it tells you:

• A crusted or cemented surface. A healthy bed's top surface is loose and pours. A surface that holds a spoon shape, or that has to be broken up, has not been fluidising.
• Clumps that do not separate. Beads bound together by iron or sediment. These will not redistribute no matter how good the backwash becomes, and they usually mean the media should be replaced.
• Visible voids or vertical tracks. Occasionally you can see the channels directly in the top few inches.
• Bed volume against the tank's design fill. A bed that has lost significant volume channels because there is not enough media to fill the flow path, and that is a distributor or screen fault — the same failure that sends resin beads into household plumbing.
• Bead condition. Healthy colour and firmness confirms the resin is not the problem, which is the point. If the beads are discoloured or soft, you have a second fault as well.

The useful negative result: clean, firm, well-coloured beads in a compacted bed is a good outcome. It means the fix is mechanical and the media can be saved.

Fixing It

The order matters, because the cheap fixes resolve most cases and the expensive one fixes nothing if the cause remains.

1. Correct the restriction. Clear or replace the drain line flow control, straighten or resize the drain line, clean the injector and screens, and address low house pressure if the gauge showed it. This is the actual repair in the large majority of cases.

2. Re-measure the backwash flow. Confirm it now meets spec. There is no point proceeding until it does.

3. Run several consecutive manual regenerations. With proper flow restored, three or four back-to-back cycles will usually fluidise and resettle the bed into an even state. Expect some discolouration at the drain during the first one or two as trapped fines finally leave.

4. Re-measure capacity. Log gallons between the next several regenerations. A bed that was channeling should show both a higher figure and — more tellingly — a more consistent one. The method for taking these readings is in how to check if your water softener is working.

5. Only then consider re-bedding. Replacement is warranted where beads are cemented together, fractured, fouled beyond recovery, or where bed volume has been lost. The re-bed against replace decision is worked through in water softener resin life and when to replace it.

What will not fix it: increasing the salt dose, raising the hardness setting, regenerating more often, or adding resin cleaner. All four treat the symptom of low capacity, and all four leave the flow path exactly as it was. Raising the hardness setting in particular just spends more salt to push the same volume of water down the same channel.

Preventing the Next One

Channeling is a maintenance failure more often than a design failure, and the preventive measures are unremarkable.

• Verify backwash flow once a year. It takes five minutes with the bucket and it catches a fouling flow control before the bed suffers.
• Keep the sediment prefilter current. Silt reaching the bed is what cements beads together, and a prefilter changed on a schedule rather than on symptoms costs very little.
• Deal with iron upstream. Iron both fouls and cements. Penn State's guidance on iron and manganese in private water systems sets out where a softener's tolerance ends and a dedicated filter becomes necessary.
• Do not let a unit sit idle for long periods with water in it. Beds that stand still settle, and a softener in a holiday property is a common candidate.
• Check the drain run whenever anything nearby is worked on. Drain lines get shortened, rerouted, clamped and crushed during unrelated plumbing work more often than anyone admits.

One sizing note worth flagging at installation. A unit that is oversized for the household regenerates rarely, which sounds efficient and is, but a bed that goes many days between backwashes has longer to settle between fluidisations. Correct sizing against actual demand — rather than the largest unit available — is covered from the testing side in test iron and manganese before sizing a softener, and the EPA's overview of cation exchange water softeners covers the demand-initiated controls that keep regeneration matched to use.

What to Do, In Order

1. Characterise the pattern. Erratic, demand-linked hardness with no reliable repeat points at channeling; steady decline points elsewhere.
2. Rule out the cheap explanations — bypass valve, salt bridge, hardness setting, meter — before going further.
3. Look up the backwash rate for your tank diameter in the manual.
4. Measure the actual backwash flow with a bucket and a watch, during backwash only.
5. Measure house pressure during backwash, not at rest.
6. Inspect the full drain run for kinks, crushes, excessive length and lift.
7. Remove and inspect the drain line flow control and injector. These are small, cheap and frequently fouled.
8. Open the tank and look at the bed surface. Crusted, clumped or short of volume each mean something different.
9. Fix the restriction, then run three or four manual regenerations back to back.
10. Log gallons between the next several cycles. Consistency returning is the proof the fix worked.

The reason this fault survives so long in so many homes is that nothing looks broken. The valve cycles, the salt goes down, the resin looks fine — and the water still goes where it wants to. Measuring the backwash is the one step that makes an invisible problem visible.
