Why Water Turns Brown After Softener Regeneration

Brown water after softener regeneration is iron coming back out of the resin bed and taking the wrong exit. During normal service the resin captures dissolved iron along with calcium and magnesium. Regeneration is meant to strip that iron off and flush it to the drain; when the backwash is inadequate, it is dislodged but not removed, and the first water drawn afterwards carries it into the house.

The timing is the diagnosis. Discolouration that appears with the first draw on cycle mornings and clears after a few minutes of running is a softener problem. Discolouration at random times is not.

The Mechanism: In During Service, Out During Backwash

Ion exchange is not selective in the way people assume. The resin holds a preference order, and dissolved ferrous iron sits on it — so a softener treating iron-bearing water takes iron out of the water whether you intended it to or not.

That is fine as long as regeneration puts it all back out. The cycle is supposed to work like this:

The failure mode is specific: iron that has been loosened but not carried away. It sits in the tank until the valve returns to service, and the next tap that opens draws it into the house.

There is a second mechanism that makes it worse. Ferrous iron is dissolved and colourless. Once it oxidises it becomes ferric — an insoluble rust particle. That happens inside the bed over time, aided by any dissolved oxygen and by the air introduced during regeneration. Ferric iron cannot be removed by exchange at all; it is a particle sitting in a filter bed that was not designed as a filter, and it accumulates.

This is why the symptom is progressive. The first few months you see nothing. Then brown water on regeneration mornings. Then capacity starts falling, and hardness begins breaking through before the next cycle — the pattern diagnosed in why hardness returns before the next regeneration.

Brown Water After Softener Regeneration: What the Timing Tells You

If the pattern is tied to the cycle, continue. If it is not, skip to the last section.

Check 1: The Backwash Flow Rate

This is the check almost nobody runs, and it is the one that most often explains the symptom.

Backwash reverses flow up through the bed to lift and separate the resin so that trapped iron and sediment can be carried out. It only works within a fairly narrow flow band. Too little and the bed never expands — the water simply channels through a static bed and takes nothing with it. Too much and resin goes out of the drain with the debris.

Measure it. You need a bucket of known volume and a stopwatch.

1. Start a manual regeneration and let it enter the backwash stage.
2. Put the drain line into a 5-gallon bucket and time how long it takes to fill.
3. Convert: gallons per minute = 300 ÷ seconds to fill 5 gallons. A 5-gallon bucket filling in 100 seconds is 3 gpm.

Compare to what the tank diameter needs. These are the drain line flow control figures commonly used for standard mesh cation resin; check your own manufacturer's figure, because fine mesh resin and iron-specific media need different rates.

If the measured flow is low, work through these in order — all cheap:

• The drain line flow control button. A small restrictor in the drain fitting, sized for the tank. Iron and salt fines block it. It usually pops out and cleans in a minute.

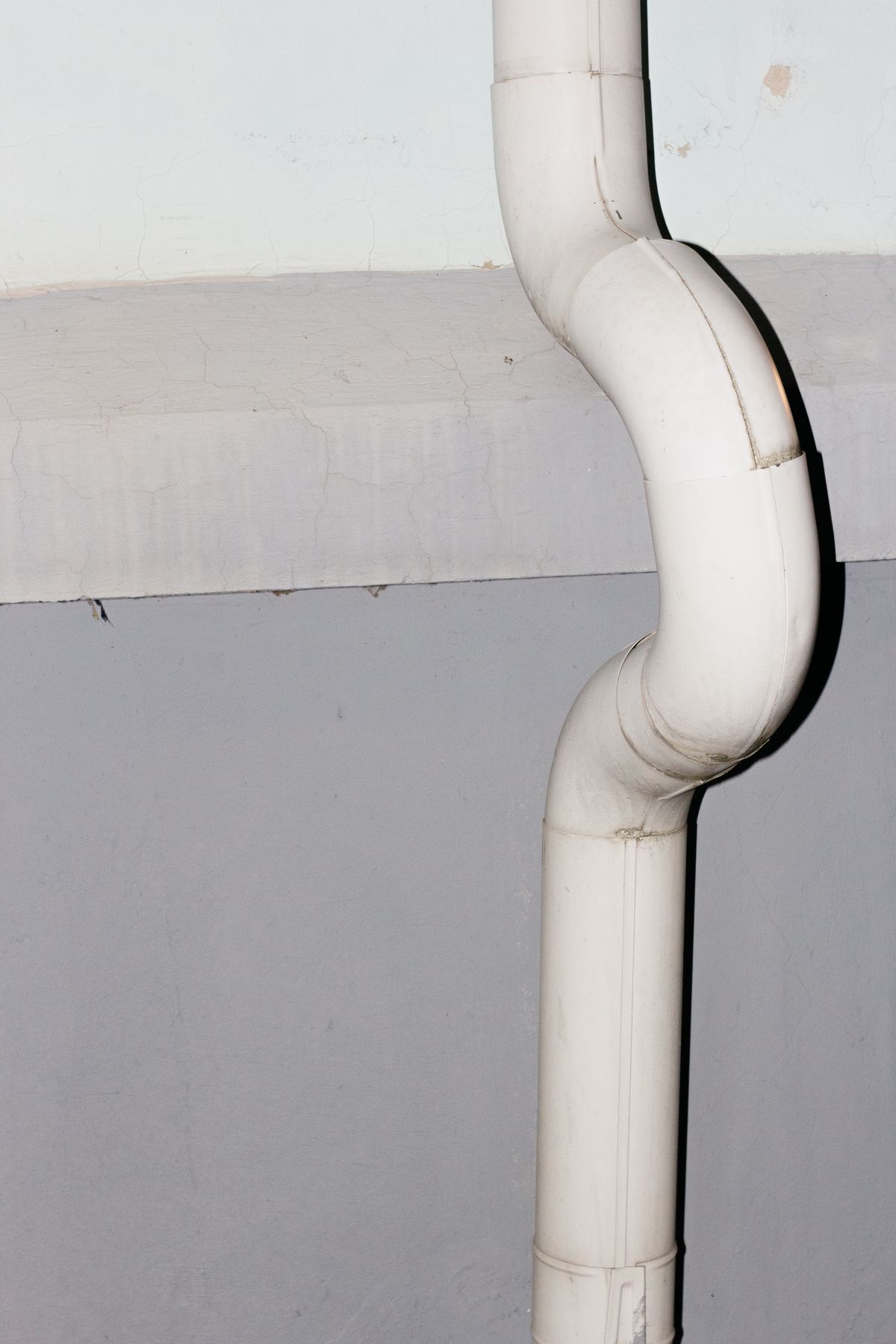

• A kinked, crushed or too-long drain line. The most common finding of all.
• Excessive lift. Most valves tolerate only 4 to 6 feet of vertical rise on the drain, less at low supply pressure.
• Low supply pressure, or a clogged sediment prefilter upstream starving the whole valve.
• The wrong flow control fitted after a repair — an 8-inch button in a 12-inch tank will never clean the bed.

Two settings worth checking while you are there:

• Backwash duration. Ten minutes is a common default and is often not enough on iron-bearing water. Twelve to fifteen minutes is a reasonable place to start if the flow rate is correct and the water still comes through brown.
• Water temperature. Cold water is more viscous and expands the bed more at a given flow rate. A rate that is correct in July can push resin out of the drain in January, and a rate set in January can under-expand the bed in July. If you are on a well with cold winter water and you find amber beads in the drain, that is the explanation.

Check 2: Is the Iron Even Within the Softener's Range?

Fixing the backwash does not help if the softener was never the right tool for the iron level. Measure before you spend anything.

You need two numbers, not one: total iron, and the split between ferrous and ferric.

• Ferrous (clear-water) iron is dissolved and invisible in a freshly drawn glass. A softener removes it by exchange, within limits.
• Ferric (red-water) iron is already oxidised and visible as rust particles immediately. A softener does not exchange it at all — it filters it, badly, and fouls.

The field test is simple: draw a glass, hold it up immediately, then leave it 15 minutes. Clear at first and orange later means ferrous. Orange from the moment it leaves the tap means ferric. A mix of both is common on wells.

The working limits:

The 0.3 mg/L figure is the EPA's secondary standard, set on staining and taste grounds rather than health, and listed in the secondary drinking water standards for nuisance chemicals. Penn State Extension's guide to iron and manganese in private water systems sets out the treatment options above those limits, including oxidising filters and aeration, and is the right reference if the numbers come back high.

Also check manganese, which travels with iron, stains black instead of brown, and fouls resin at much lower concentrations. And check pH, because iron behaviour changes with it — the interaction is covered in how to interpret pH and hardness together. The measurement side, including why the iron figure must be folded into the softener's hardness setting, is in testing iron and manganese before sizing a softener.

Check 3: Inspect the Bed

Ten minutes with the top off the tank tells you whether you are looking at a cleaning job or a replacement.

Put the unit in bypass, depressurise, and remove the top of the resin tank. Then look at the beads:

Black rather than brown is worth noting specifically: that is manganese, and it fouls more stubbornly than iron and responds less well to cleaning.

Resin Cleaners: When They Work and When They Do Not

Iron-removing resin cleaners are citric acid or sodium hydrosulphite based. Both work by dissolving or reducing iron oxide so that the next backwash can carry it out.

Where they work well: prevention. Dosed into the brine well monthly, on a system whose iron level is within range and whose backwash flow is correct, a cleaner keeps the bed from accumulating iron in the first place. This is cheap, takes five minutes, and materially extends resin life on well water.

Where they work poorly: rescue. On a bed that has been fouling for two or three years, a cleaner will lift surface iron and produce a visible improvement for a few weeks. It does not reach iron that has oxidised inside the bead structure, and it does not restore exchange sites that are permanently blocked.

A reasonable trial before giving up:

1. Fix the backwash flow first. A cleaner without adequate backwash just redistributes the iron.
2. Dose per the label into the brine well, and run three manual regenerations over a week, not one.
3. Track capacity: measure hardness daily through the following cycle and compare to the cycle before.

If capacity has not improved after that, stop. Repeated dosing on a heavily fouled bed is throwing money at a bed that is finished.

When Resin Must Be Replaced Instead

Replacement is the right answer when:

• Capacity has fallen by more than roughly a third from its original figure and cleaning has not recovered it.
• The beads are clumped, dark or mushy on inspection.
• Brown water persists after the backwash flow has been corrected and verified.
• The bed is more than ten to fifteen years old on a chlorinated supply, or considerably less on iron-bearing well water, where iron shortens life substantially.

Rebedding is far cheaper than a new system if the control valve and tank are sound, and it is the usual answer rather than replacing the whole unit.

The critical caveat: replacing the resin without fixing the cause buys two to three years and then delivers the identical symptom. If the iron is above the softener's range, or the backwash has never had adequate flow, fix that as part of the same job. Iron removal belongs ahead of the softener — an oxidising filter, aeration and filtration, or a dedicated iron filter, depending on the concentration, the ferrous/ferric split and the pH. Getting that order wrong is one of the more expensive mistakes in well water treatment.

Brown Water That Is Not the Softener

Rule these out before dismantling anything:

• Municipal mains work or a hydrant flush. Disturbed mains release accumulated iron and manganese deposits. Usually clears within a day. Call the utility before spending money.
• The water heater. Hot taps discoloured and cold taps clear means the heater, not the softener — see hard water sediment in a storage water heater.
• Old galvanised pipe. Interior corrosion releases rust, often after any pressure change, and typically worst at the first draw of the day regardless of the softener cycle.
• A change at the well. A dropping water table, a new nearby well, or heavy rain can change iron and sediment loading. The seasonal variability of well chemistry is covered in how to test hardness in private well water, and the EPA's private wells guidance sets out sensible testing intervals.
• Staining without discoloured water. Rings and stains on fixtures without visible colour in the glass are a different diagnosis — start with household problems commonly mistaken for hard water.

Fix Order

1. Confirm the timing. Brown on the first draw of cycle mornings, clearing within minutes? Continue. Random? Test the source.
2. Measure the backwash flow with a bucket and a stopwatch. Compare to the tank diameter figure.
3. Clean or replace the drain line flow control, straighten the drain line, check the lift.
4. Lengthen the backwash to twelve to fifteen minutes if flow is correct and colour persists.
5. Test the iron — total, and the ferrous/ferric split — plus manganese and pH.
6. Above the softener's range? Stop. Pretreatment ahead of the softener, not more cleaner.
7. Within range? Start monthly resin cleaner and give it three cycles.
8. Inspect the bed. Clumped, dark or mushy means rebedding.
9. Rebed only after the cause is fixed, or you will be back here in two years.

The one thing not to do is treat this as cosmetic. Brown water on cycle mornings is the visible stage of a process that ends with a softener that no longer softens — which is why why water is still hard after installing a softener and this page so often turn out to be the same case six months apart.
